Integrate accurate localisation into your project
xRED
Built for systems integrators and projects where SWaP constraints are tight, the xRED uses our latest IMU10 inertial technology and two survey-grade GNSS receivers to deliver centimetre-level position accuracy and inertial data on an OEM board.
SPECS
0.01m
Position
0.01°
Pitch/Roll
0.025km/h
Velocity
0.4°
Heading
20g
Mass
Why Choose xRED?
Precision Navigation
Highly accurate, reliable, real-time INS navigation
Localisation data you can rely on, even in the harshest GNSS environments. Ideal for georeferencing or precision control applications.
• Two survey-grade, quad GNSS antennas
• IMU10 inertial measurement unit
Powerful performance in a pocket-sized package
As a board set inertial navigation system, the xRED is designed for easy integration into wider systems. As well as the connections listed below, the xRED offers clock synchronisation via PTP/gPTP (master or slave),
NTP master, NMEA, and PPS.
Ethernet
3V3 TTL serial port
RS232 serial port
Digital I/O
Status LED outputs
An integrator-ready GNSS/INS
Post-processing tools included
All OXTS GNSS/INS devices include our NAVsuite software for free. NAVsuite gives you powerful post-processing tools for improving the quality of your data. It includes applications to help you accurately configure your GNSS/INS as well as real-time data monitoring and data visualisation tools
Volume pricing for large-scale operations
For fleet operators looking to use inertial navigation technology at scale, we offer volume pricing to help you create the most commercially compelling and high-performing products
Other Features
gx/ix GNSS/IMU Tight-Coupling Technology
The RED leverages advanced gx/ix tight-coupling to seamlessly integrate GNSS and inertial data. This fusion enhances positioning accuracy and system robustness, even in challenging environments.
Low Dynamics Warmup
Designed for rapid stabilization, the low dynamics warmup feature minimizes startup time, ensuring the system quickly reaches optimal performance under low-motion conditions.
Customise features for your application
Tailor the RED to your unique requirements with flexible configuration options. This adaptability lets you optimize performance for a wide range of operational needs.
Embedded NTRIP Client
The integrated NTRIP client enables seamless access to realtime correction data, enhancing GNSS accuracy and supporting precise, reliable navigation.
ITAR-free Interface
Developed without ITAR restrictions, the RED ensures smooth international deployment and compliance, making it a versatile choice for global applications.

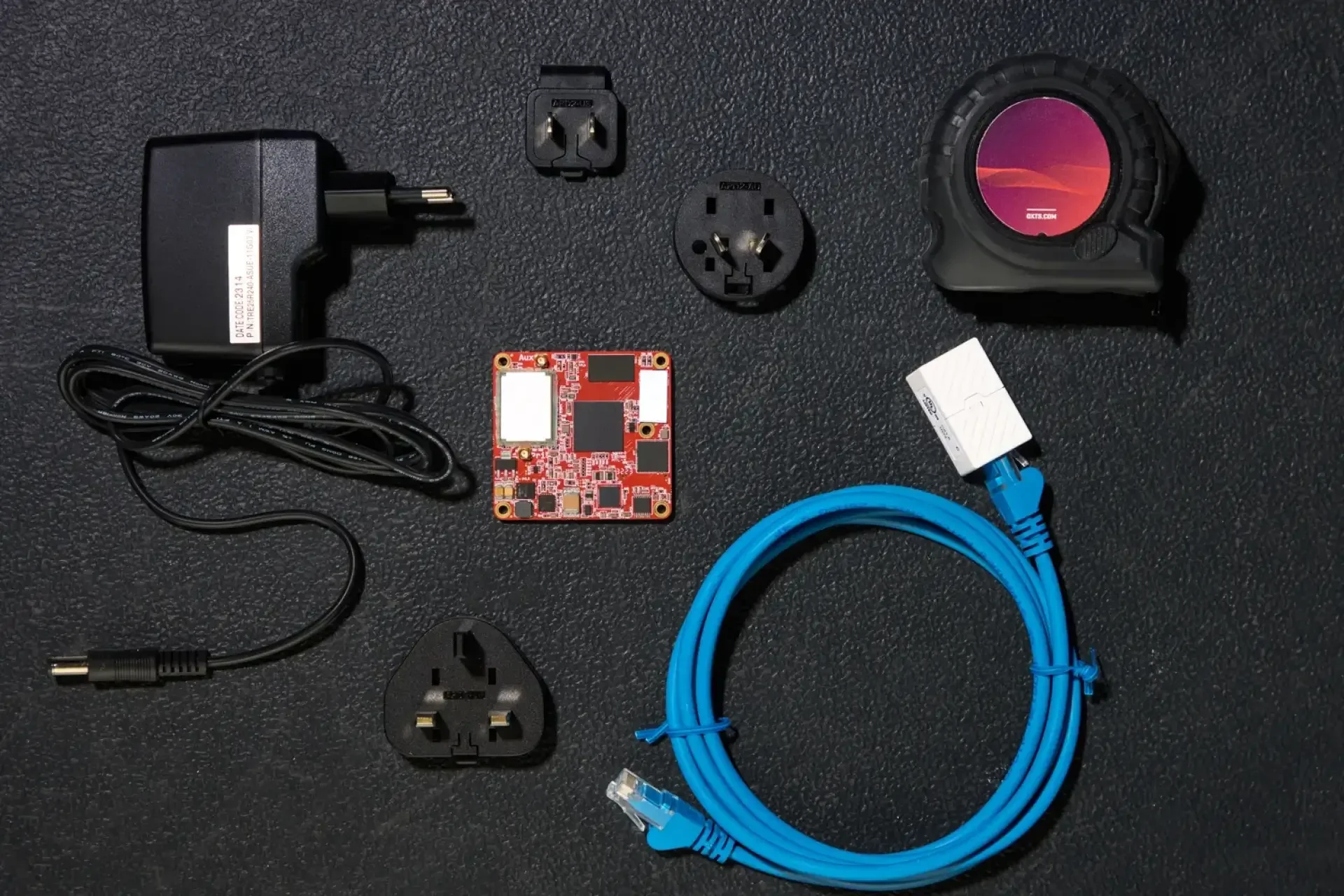

Full Range of Accessories Available
The RED offers a comprehensive suite of accessories designed to enhance system integration and performance.
This extensive range ensures that you can customize your setup to meet specific application requirements, providing flexibility and added functionality for various operational environments.
