Vibration Testing System
ADT SYSTEM specializes in a comprehensive array of advanced vibration testing systems designed to effectively simulate the operating and field environment dynamic conditions for various vibration-related applications. With a diverse selection of specialized equipment available to accommodate different variations of environmental testing, ADT SYSTEM is well-equipped with all the necessary tools that are meticulously engineered to meet the rigorous requirements of endurance testing, while also providing exceptional performance as well as unmatched reliability. Moreover, with an extensive range of both standard and optional fittings, there is assuredly a suitable solution to meet the unique needs of every individual client. With our vast technical expertise, our dedicated team of skilled engineers is always prepared to tailor solutions specifically to instances where a standard option is not readily available.

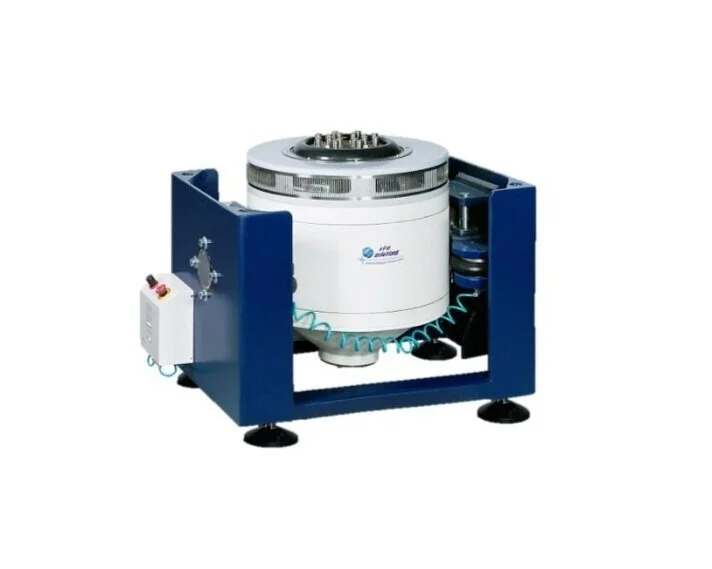

Low force shakers
Ideal for screening of small electronic assemblies, automotive components, handheld units, storage devices, connectors
Medium force shakers
Ideal for testing medium to large sized electronic assemblies, automotive parts, and aviation and avionics parts
High force shakers
High force system with high performance ideal for testing large sized assemblies with high accelerations
High acceleration shakers
Screening of medium sized assemblies with extreme high acceleration test level and high frequency range
Long stroke shakers
Ideal for test applications such as packaging testing and vehicle testing
Multi axis shakers
Multi-Excitation Testing real world vibration simulation and screening tests
Permanent magnet shakers
Solutions to assist engineers to carry out vibration testing on small components and exciting structures for modal and structural analysis.
Power amplifiers
Designed for continuous operation with any electro-dynamic shaker

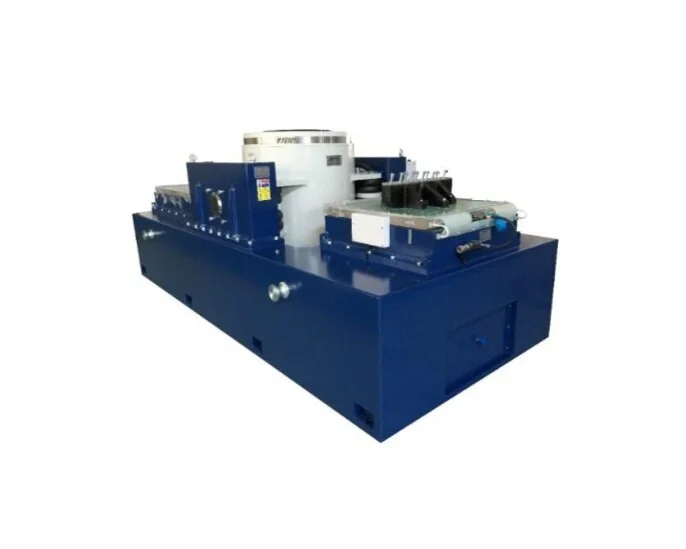

Slip tables
Options of unibase or standalone slip table to meet different requirements for horizontal test.

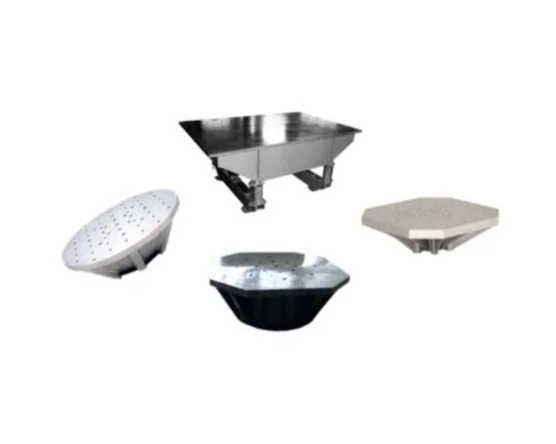

Head Expanders
For applications where larger vertical test mounting surface are required.
Accessories
Load support systems, bearing guidance, load isolation support, thermal barrier, guided lifting system
Vibration control
Complete portfolio solution for noise and vibration testing can be offered with the ETS Solutions vibration testing system.
VIBRATION TESTING SYSTEM SETUP
The use of vibration in Environmental Stress Screening (ESS) has expanded from the past from purely military applications until today commonly applied in the commercial sector. The use of ESS becomes a standard customer defined requirement in the aerospace and defence related products to ensure safe operation of critical equipment. Commercial product manufacturers today typically have full ESS programs in place with vibration test or combined with thermal cycling. The ESS programs are designed to comply with military and other international standards such as MIL, ASTM, IEC, ISO, BS etc.
The use of vibration in ESS has been proven to be a way to increase product reliability. It is also a tool to assist engineer in the product development process. Simulating the environment condition on the developing product will allow the design engineers to classify and analyse screening data to identify problem areas and recommend early corrective action.
Vibration testing as a part of ESS ensures the occurrence of failures in the product in early stage. These failures then occur before the units leave the manufacturing facility, dramatically improving field reliability. The optimal screening will maintain field failure cost savings.
PREREQUISITE SYSTEM COMPONENTS
1. Vibration controller required for test profiling control. ETS shakers are compatible with all major vibration controllers.
2. Signal conditioner required to provide current source for accelerometer or function as a charge amplifier.
3. Accelerometer built-in amplifier type or charge-type for signal feedback to vibration controller or data acquisition.
ETS is able to provide a complete system package with a suitable controller of your choice.
SHAKER ACCESSORIES UNITS
Optional Remote Control Panel with full logic module replication function at remote site of up to 500m.
Servo Control Console for static and dynamic and armature auto-centering.
Customised head expanders and fixtures. Contact us for more information.
Different sizes of slip table available for horizontal testing. Contact us for more information.
