Reliable and precise localisation in a small package
xNAV650
If you need highly accurate localisation data but size, weight and power (SWaP) are important, the xNAV650 is a great value inertial navigation system that balances, reliability, accuracy and form factor. Coupled with its compatibility with mapping equipment including LiDAR scanners, the xNAV650 is ideal for integrating into UAVs and other lightweight mapping payloads.
SPECS
0.02m
Position
0.05°
Pitch/Roll
0.1km/h
Velocity
0.1°
Heading
0.71m
Position following 60 sec GNSS outage (PP)
Why Choose xNAV650?

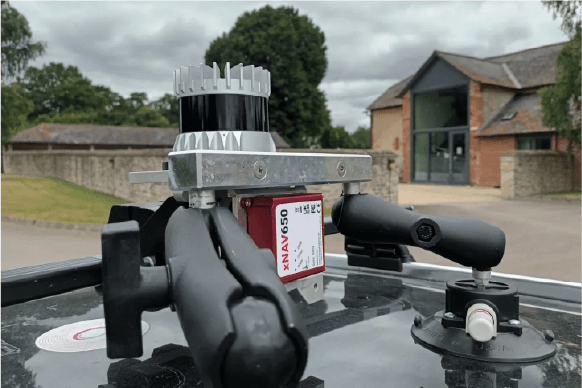

Precision Navigation
Cost-effective, reliable, real-time position and navigation data
• Optimal global position accuracy from two
survey-grade, quad constellation GNSS
receivers
• Reduced drift and smooth data output from
high-quality MEMs inertial measurement unit
• Gx/ix tightly coupled GNSS engine delivers
reliable performance in harsh GNSS
environments t

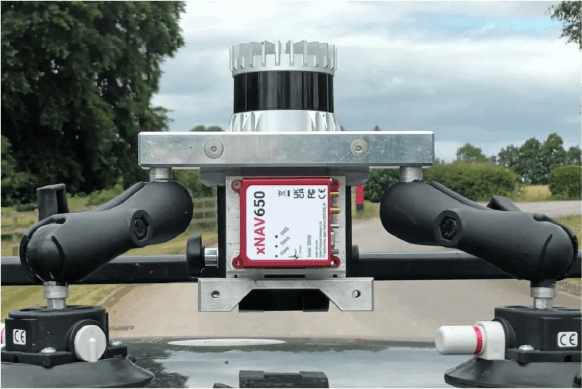

Optimised for SWaP constraints
• 130g
• 4w power consumption
• 77x63x24mm
Post-processing tools included
All OXTS GNSS/INS devices include our NAVsuite software for free. NAVsuite gives you powerful post-processing tools for improving the quality of your data. It includes applications to help you accurately configure your GNSS/INS as well as real-time data monitoring and data visualisation tools.
Other Features
ITAR-free
The xNAV650 is developed without ITAR restrictions, ensuring smooth global deployment and compliance for international operations.
Customise features for your application
Tailor the xNAV650 to your specific needs with flexible configuration options that adapt to varied operational requirements.
Economical volume pricing
Optimized for scalability, this system offers competitive pricing for large-scale orders, enhancing cost efficiency for extensive projects.
Serial Interface
The built-in serial interface guarantees reliable, real-time communication with peripheral devices, ensuring seamless data exchange.
Ethernet Interface
Featuring a high-speed Ethernet interface, the XNAV650 supports robust network integration for efficient data transfer and connectivity.
Simple DB9 connector
The straightforward DB9 connector design simplifies installation and maintenance, providing a hassle-free, plug-and-play solution.
Streamline I/0
Engineered for efficiency, the streamlined I/O minimizes wiring complexity and enhances overall data management, ensuring reliable performance.
