VR Mobile
Collect data with the press of a button using the battery -powered ObserVR1000 hardware and a mobile interface. Stream to the SD card or PC while running other test modes, or use it independently as a field data recorder and analysis package.
ObserVR1000
SIGNAL ANALYSIS HARDWARE
16 - 128 available
inputs
128kHz simultaneous sample rate for control and analyzer
802.11 b/g/n WiFi & Gigabit Ethernet
24-bit analog to digital converter
6+ hour battery life (additional 6 with battery pack)
GPS
SMART SETUP, MONITORING, AND INTERACTION WITH THE OBSERVR1000
Mobile App
VR MOBILE & OBSERVR1000
Onboard Applications

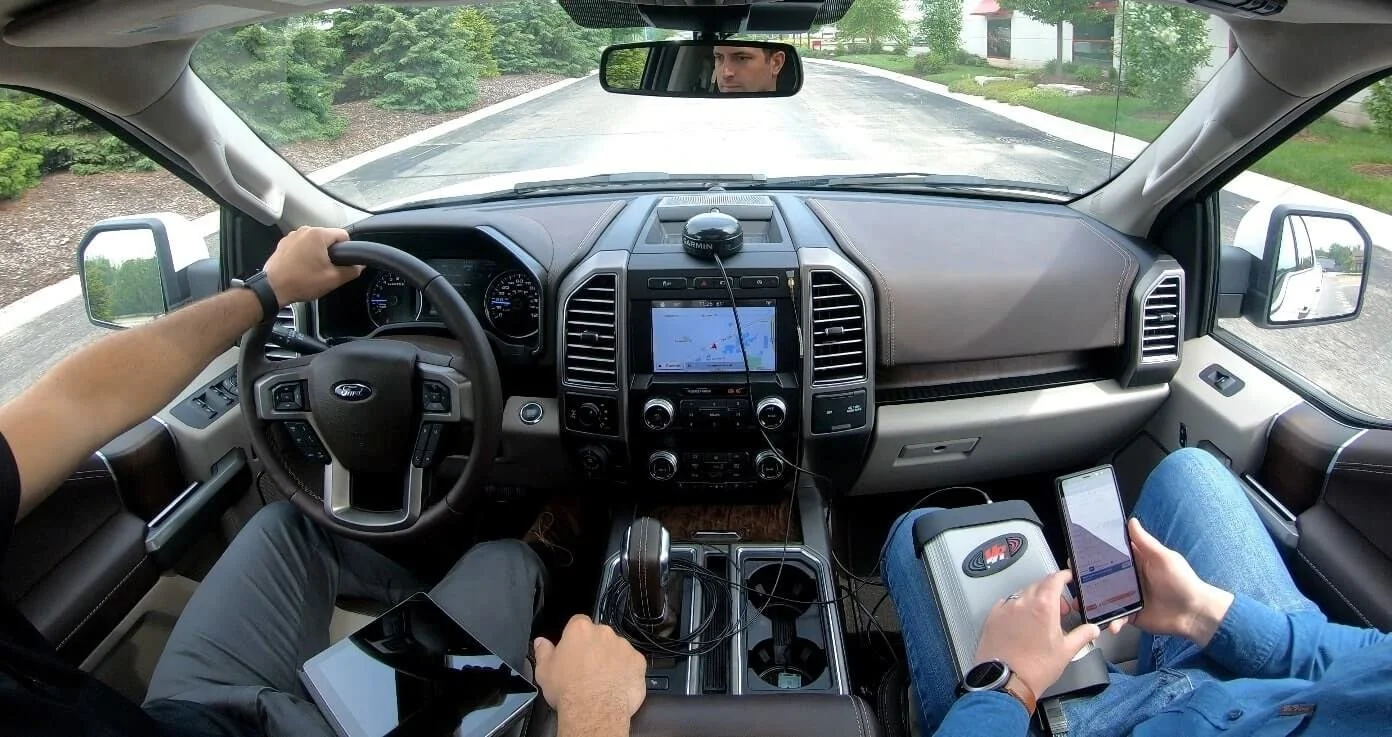

MONITOR TESTS REMOTELY
Observe a live data recording from any mobile device (and simultaneously in the lab). Select, start, and stop the test and analyze issues with a live FFT display.

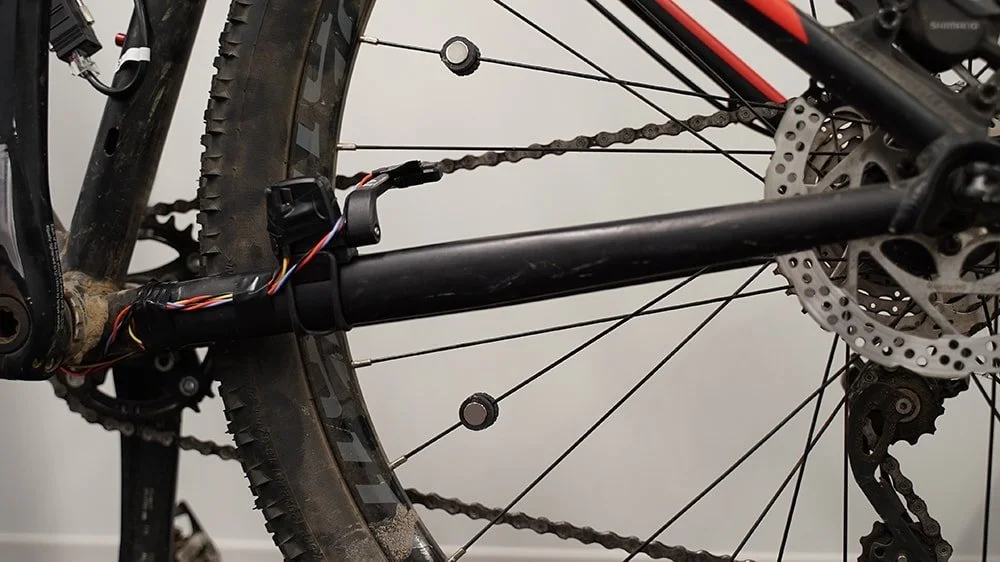

CONNECT A TACHOMETER
Configure a dual or quadrature tachometer to measure rotation. Encoder types include wheel, rotational, or scalar.
SET UP AUTONOMOUS ACQUISITION
Define any number of triggering events to record data without interference. Save processing time, capture transient events, drive external equipment, and more.

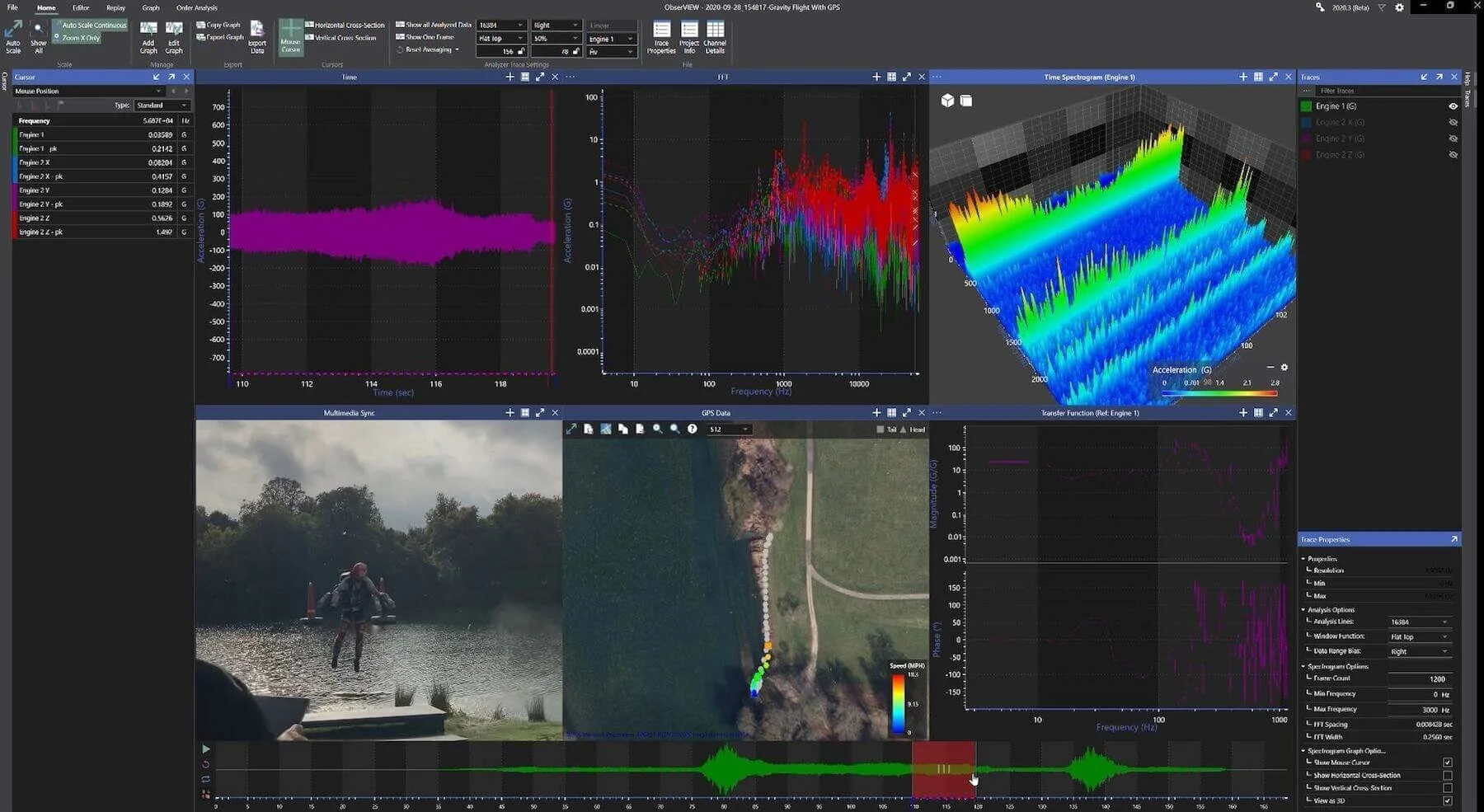

DISPLAY GPS DATA
View position updates at about 1Hz along with GPS time base synchronization. Then, play the GPS media files in sync with a waveform recording.

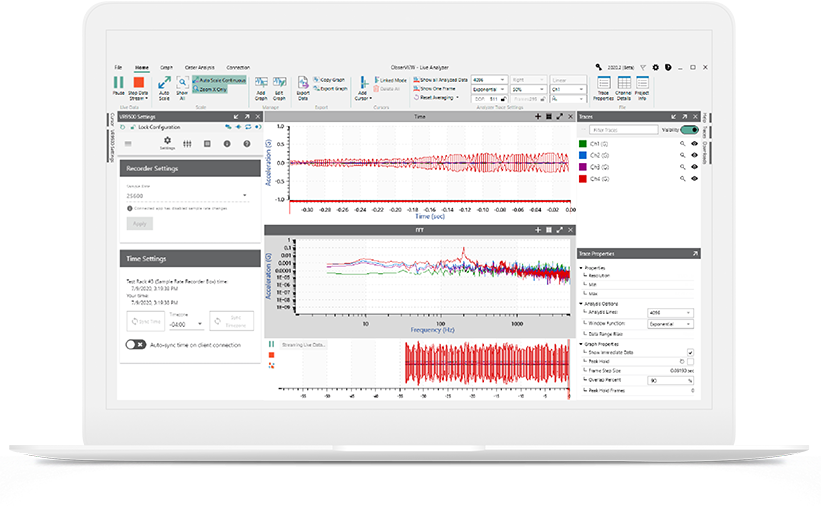

ANALYSIS IN REAL-TIME
Live Analyzer
With Live Analyzer, you don’t have to wait until post-process to begin data analysis. View data in real-time and then pause the live stream to select, analyze, and export a section of the time waveform. Access the ObserVIEW graphing packages, employ averaging, analyze tachometer channels, and more.
AUTONOMOUS DATA ACQUISITION
Triggering
In VR Mobile, set up actions to occur automatically following an event; after the trigger, the ObserVR1000 will record data without intervention. This feature saves time and ensures accuracy and consistency during recording.
LIVE OR POST-PROCESS ANALYSIS
Fatigue Damage
With Fatigue Damage Spectrum, calculate the amount of fatigue your product will experience in a lifetime. Then, monitor your test to determine how long it will take for the product to arrive at the lifetime of accumulated fatigue. The ObserVR1000 includes the length of time to reach fatigue in each axis.
