Vibration Controllers
Set up and safely control vibration shaker tests using any VR hardware unit and generate custom reports. Configure the VibrationVIEW control software for as many or as few test modules as you’d like (à la carte). Pick your control hardware based on specific needs.
VIBRATIONVIEW CONTROLLER HARDWARE

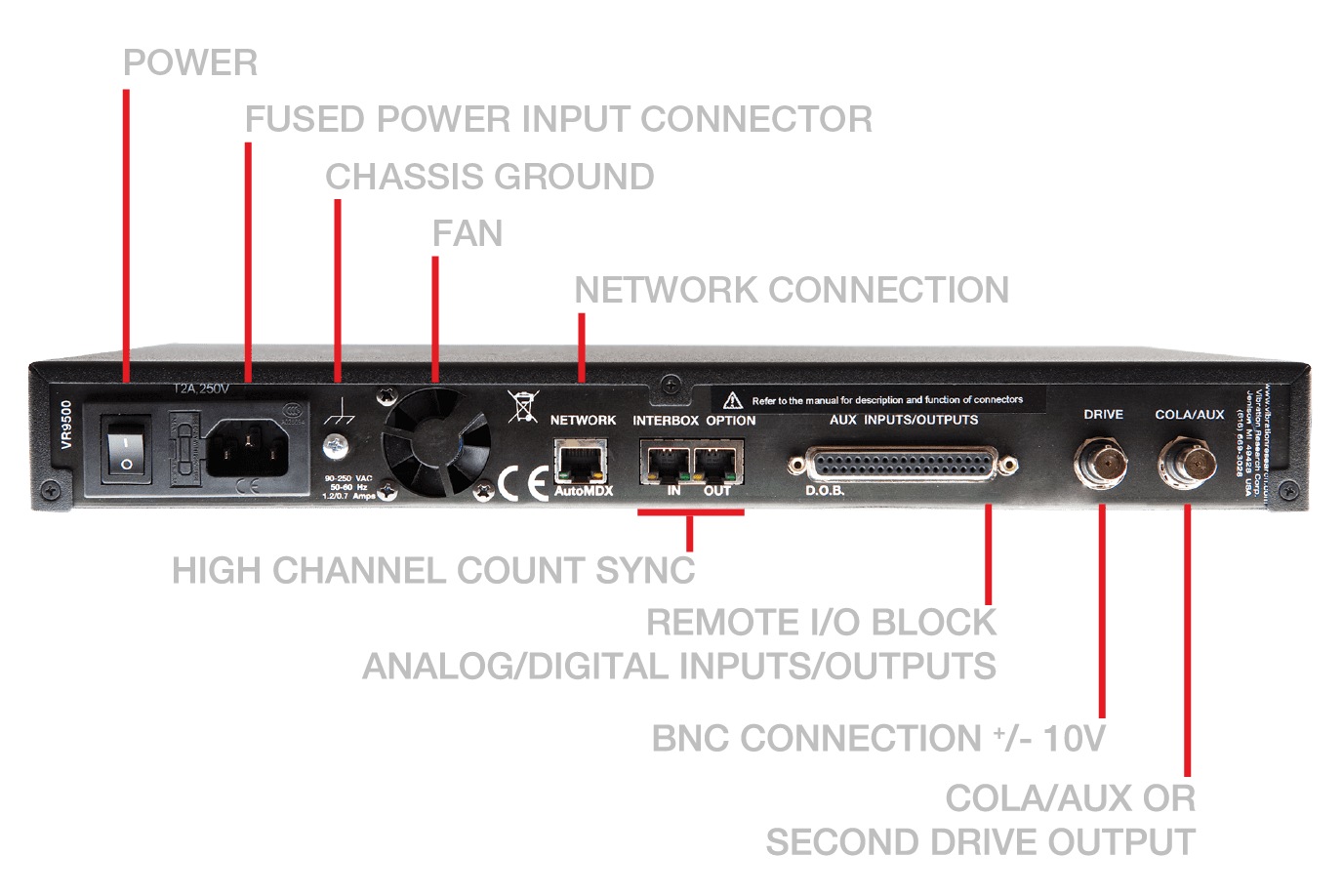

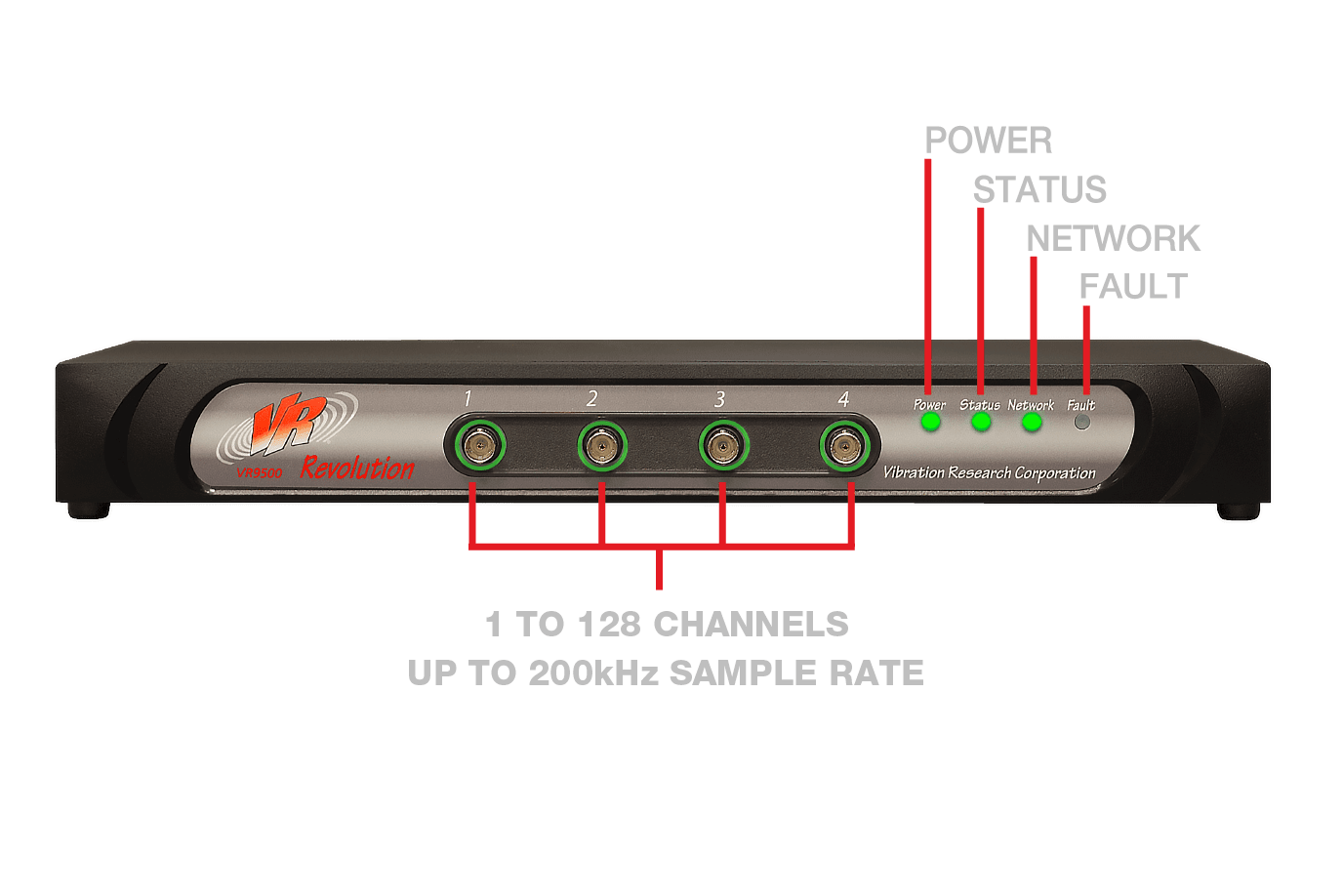

VR9500
Scalable to 128 channels (mix & match units between shakers)
Up to 200kHz sample rate for control and analyzer
24-bit inputs & outputs
Lifetime hardware warranty
Free demo units with all software enabled
26,000 lines of resolution
Single-core processor
2 outputs
Rear remote I/O block for up to 8 inputs/outputs
Read & write TEDS sensors
Extremely low noise floor (130dB dynamic range)
200V self-resetting fused inputs
Up to 50kHz control
Integrated IEPE/ICP® supply

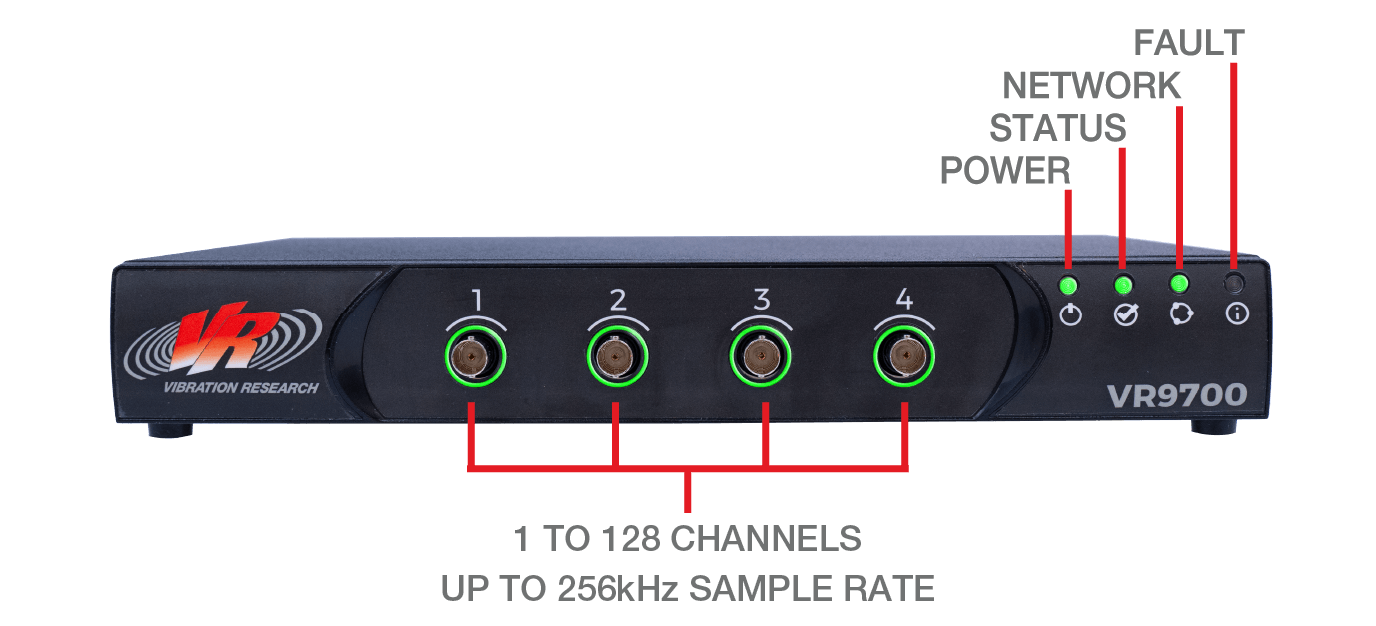

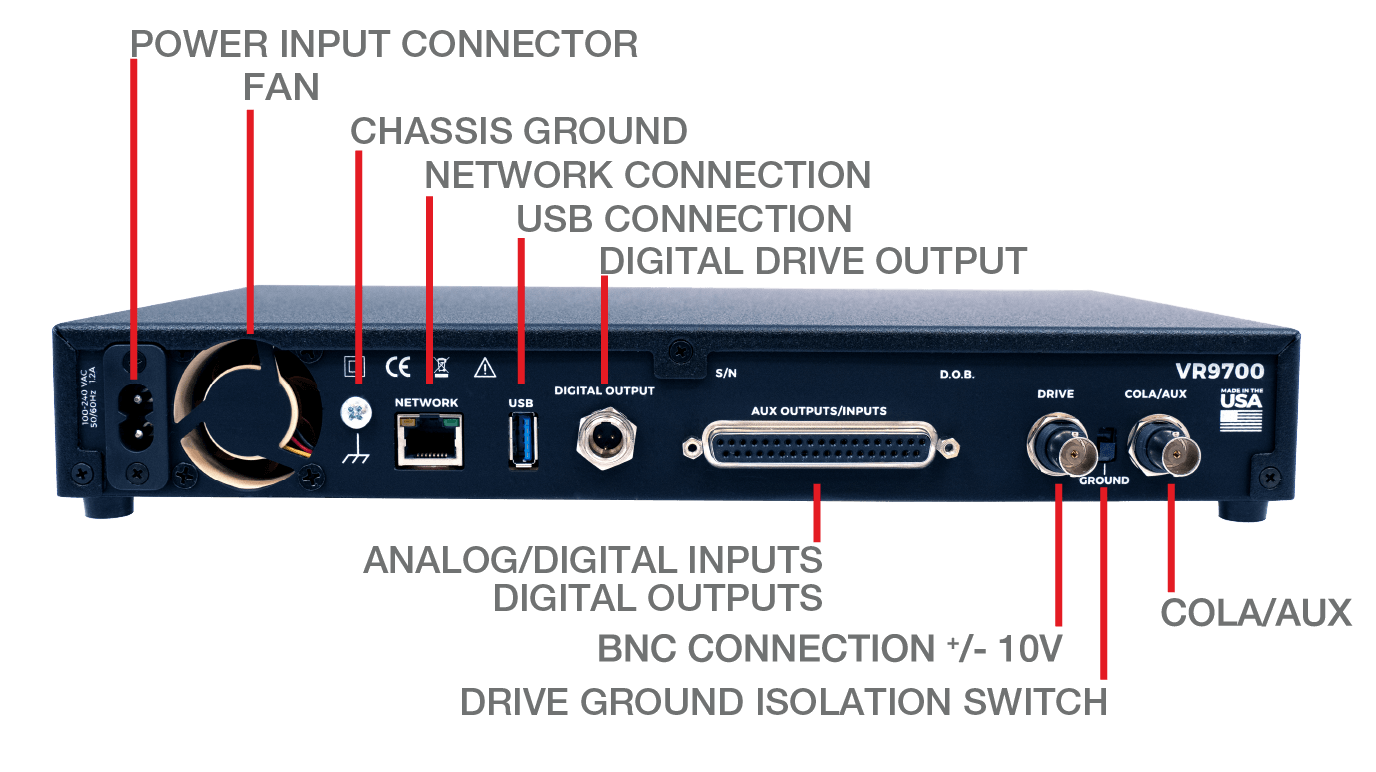

VR9700
Scalable to 128 channels (mix & match units between shakers)
Up to 256kHz sample rate for control and analyzer
24-bit inputs; 32-bit outputs
Lifetime hardware warranty
Free demo units with all software enabled
26,000 lines of resolution
Fast dual core processor
2 outputs
Rear remote I/O block for up to 8 inputs/outputs
Read & write TEDS sensors
Extremely low noise floor (130dB dynamic range)
200V self-resetting fused inputs
Up to 50kHz control
Integrated IEPE/ICP® supply

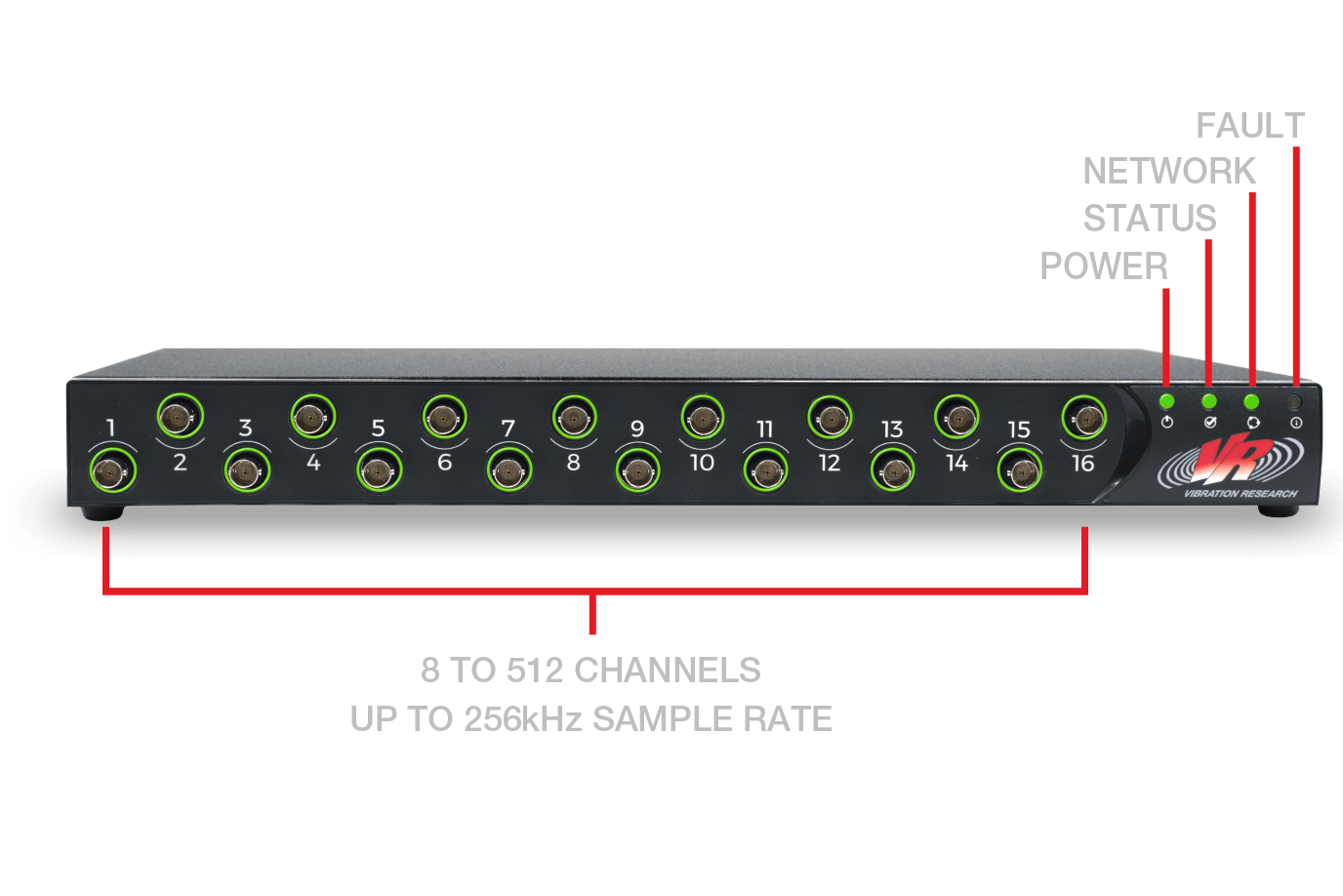

VR10500
Scalable to 512 channels (mix & match units between shakers)
Up to 256kHz sample rate for control and analyzer
24-bit inputs, 32-bit outputs
Lifetime hardware warranty
Free demo units with all software enabled
104,000 lines of resolution
Quad-core processor
4 outputs for multiple shakers
Rear remote I/O block for up to 8 inputs/outputs
Read & write TEDS sensors
Extremely low noise floor (130dB dynamic range)
200V self-resetting fused inputs
Up to 50kHz control
Integrated IEPE/ICP® supply
ObserVR1000
Scalable to 128 channels (mix & match units between shakers)
Up to 128kHz sample rate for control and analyzer
6+ hour battery life (additional 6 with battery pack)
1-year hardware warranty
Tachometer inputs
1451.4 TEDS class 1
24-bit analog to digital converter
802.11 b/g/n WiFi & Gigabit Ethernet
< -100dB THD+N
+/-10V range
40V tolerant inputs - transient protection
>110dB dynamic range
On-board storage (SD or WiFi to PC)
Dual-core processor
