Responsive Modal Testing Accelerometers Table

        SINGLE AXIS ACCELEROMETERS FOR MODAL TESTING

                Model Number
                Sensitivity (±10%)
                Measurement Range
                Frequency Range (±5%)
                Broadband Resolution



                333A22
                10 mV/g
                ± 500 g pk
                1 to 6,000 Hz
                0.0005 g rms

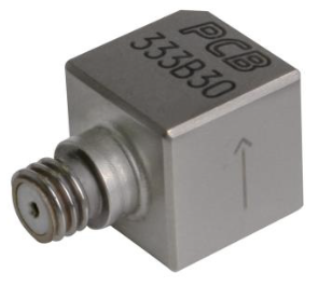

                333B30
                100 mV/g
                ± 50 g pk
                0.5 to 3,000 Hz
                0.00015 g rms


                333B32
                100 mV/g
                ± 50 g pk
                0.5 to 3,000 Hz
                0.00015 g rms


                333B40
                500 mV/g
                ± 10 g pk
                0.5 to 3,000 Hz
                0.00005 g rms


                333B45
                500 mV/g
                ± 10 g pk
                0.5 to 3,000 Hz
                0.00005 g rms


                333B50
                1,000 mV/g
                ± 5 g pk
                0.5 to 3,000 Hz
                0.00005 g rms




Responsive Modal Testing Accelerometers Table


                Model Number
                Sensitivity (±10%)
                Measurement Range
                Frequency Range (±5%)
                Broadband Resolution

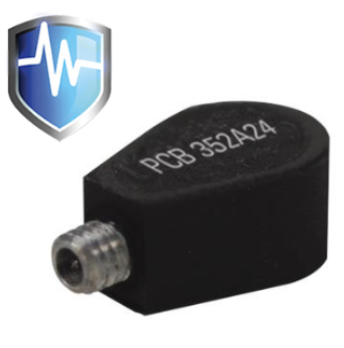

                352A24
                100 mV/g
                ±50 g pk
                1.0 to 8000 Hz
                0.0002 g rms

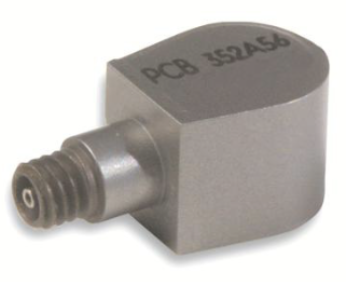

                TLD352A56
                100 mV/g
                ±50 g pk
                0.5 to 10000 Hz
                0.0006 g rms


                TLD333B30
                100 mV/g
                ±50 g pk
                0.5 to 3000 Hz
                0.00015 g rms


                TLD333B40
                500 mV/g
                ±10 g pk
                0.5 to 3000 Hz
                0.00005 g rms


                TLD333B50
                1000 mV/g
                ±5 g pk
                0.5 to 3000 Hz
                0.00005 g rms


                TLD333B32
                100 mV/g
                ±50 g pk
                0.5 to 3000 Hz
                0.00015 g rms




Responsive Accelerometer/Force Sensor Table

                Model Number
                288D01

                Sensitivity (±10 %) (Acceleration)
                100 mV/g

                Sensitivity (±10 %) (Force)
                100 mV/g

                Measurement Range (Acceleration)
                ±50 g pk

                Measurement Range (Force)
                ±50 lbf pk

                Frequency Range (±5 %) (Acceleration)
                1 to 5000 Hz

                Frequency Range (±10 %) (Acceleration)
                0.7 to 7000 Hz

                Broadband Resolution
                0.002 g rms

Responsive Accelerometer Table

                Model Number
                333B52

                Sensitivity (±10 %)
                1000 mV/g

                Measurement Range
                ±5 g pk

                Frequency Range (±5%)
                0.5 to 3000 Hz

                Broadband Resolution
                0.00005 g rms

Responsive Accelerometer Table

                Model Number
                333B4

                Sensitivity (±20%)
                100 mV/g

                Measurement Range
                ±50 g pk

                Frequency Range (±5%)
                2 to 1000 Hz

                Broadband Resolution
                0.00007 g rms

Structural Test ICP Accelerometers for Modal Testing
