Special Purpose Instruments

ICP® Impedance Head Force Sensor Comparison Table

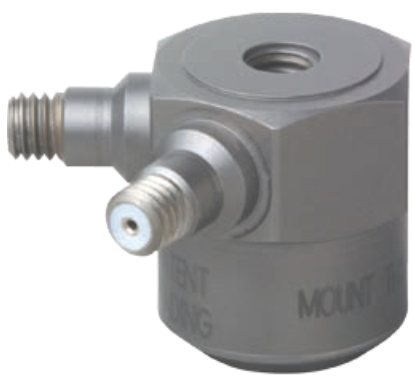

ICP® IMPEDANCE HEAD FORCE SENSOR

Model Number	(TLD)288D01

Sensitivity (Acceleration) (Force)	100 mV/g 100 mV/lb
Measurement Range (Acceleration) (Force)	±50 g pk ±50 lbf pk
Frequency Range (±5 %) (Acceleration)	1 to 5000 Hz
Typical Applications	Structural Testing Modal Analysis

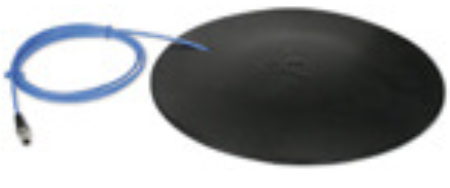

Triaxial ICP® Seat Pad Accelerometer Comparison Table

Model Number	356B41

Sensitivity (±10 %)	100 mV/g
Measurement Range	±10 g pk
Frequency Range (±5 %)	0.5 to 1000 Hz
Typical Applications	Operator Comfort Studies Construction Vehicle Vibration Exposure Seat Design Studies Seat Mounting, Suspension, Bracket, and Damping Tests

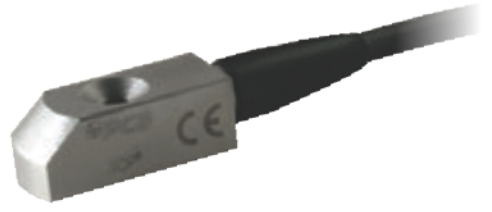

ICP® Strain Sensors Comparison Table

Model Number	740B02	740M04	RHM240A01	RHM240A02	RHM240A03	RHM240M40

Sensitivity	50 mV/µε	5 mV/µε	100 mV/µε	50 mV/µε	10 mV/µε	10 mV/µε
Measurement Range	100 pk µε	900 pk µε	50 pk µε	100 pk µε	300 pk µε	300 pk µε
Frequency Range	0.5 to 100,000 Hz		0.015 Hz	0.004 Hz	0.004 Hz	0.004 Hz
Broadband Resolution	0.6 nε	5.0 nε	0.0001 nε	0.0002 nε	0.001 nε	0.001 nε
Discharge Time Constant	1 to 3 sec		≥35 sec	≥150 sec
Typical Applications	Automotive fatigue testing		Process monitoring, press force control and monitoring, and composite material testing
