Top-tier localisation

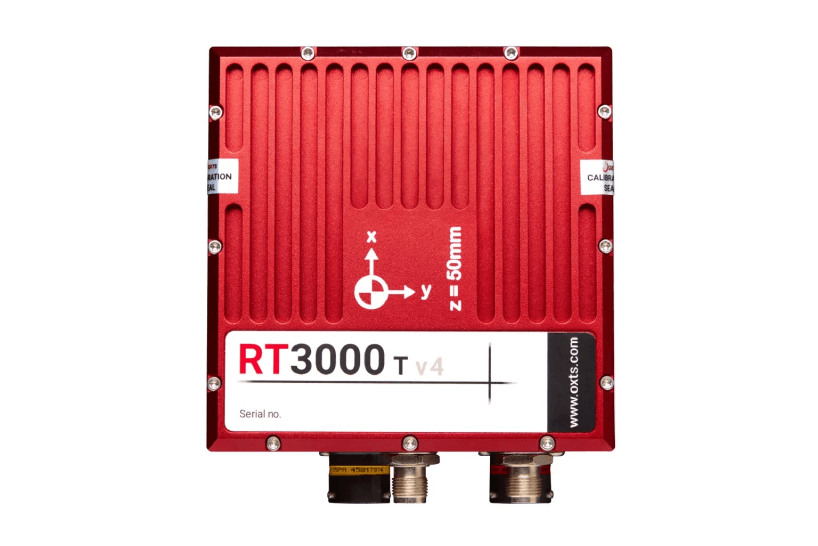

RT3000 v4
When you need robust, out-of-the-box localisation capabilities, the RT3000 v4 gives you survey-grade GNSS positioning with OXTS’ most accurate inertial measurement unit.
SPECS
0.01m
Position
0.01°
Pitch/Roll
0.05°
Slip angle
0.04°
Heading
0.21m
Position following 60 sec GNSS outage (PP)
Why Choose RT3000 v4?
Robust, reliable, real-time INS navigation
Localisation data you can rely on, even in the harshest GNSS environments.
• Two survey-grade, quad-constellation GNSS receivers
• OXTS’ latest IMU10 inertial measurement unit
• Gx/ix single satellite aiding technology
• Embedded NTRIP client
• Streamlined sensor fusion
Low-dynamics warm up
Fast & Easy Initialisation
The RT3000 v4 gets to specification with just three minutes oflow-dynamic movement. No more finding the time and space for high-dynamic manoeuvres just to get your GNSS/INS working
ISO 17025 calibration available
Prove that your GNSS/INS meets industry standards for accuracy with our ISO 17025 calibration service.
Post-processing tools included

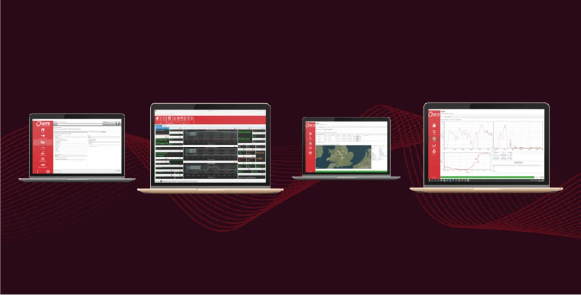

Free NAVsuite software
All OXTS GNSS/INS devices include our NAVsuite software for free. NAVsuite gives you powerful post-processing tools for improving the quality of your data. It includes applications to help you accurately configure your GNSS/INS as well as real-time data monitoring and data visualisation tools.
Compatible with RT-Range
ADAS testing professionals can use the RT3000 v4 alongside the industry-leading V2V and V2L testing solution, RT-Range.
Powerful Variations
8g or 16g
If your application is more dynamic, you can choose to have a 16g version or our RT3000 v4, in comparison to the standard 8g that we offer.
Terrastar Corrections
In addition to the NTRIP and RTK corrections our units receive, the RT3000 T v4 offers additional Terrastar corrections too.
DO-160 Approved
Will full protection against the harshest of environments, the RT3000 v4 DO-160 has passed rigorous testing to ensure it is reliable in tough conditions.
Other Features
ITAR-free
You can ship the RT3000 v4 globally with no need for an export license. Whether you're including the RT3000 v4 in a product for global release, or need it to travel with a test vehicle or surveying payload, we've got you covered.
Compatibility with RT-Range
ADAS testing professionals can use the RT3000 v4 alongside the industry-leading V2V and V2L testing solution, RT-Range.
IP65 case
Will full protection against dust and rain, the RT3000 v4 can handle whatever elements you're operating in.
