Low Outgassing ICP® Accelerometers and Cables

Responsive Low Outgassing Accelerometers Table

        Low Outgassing Accelerometer Types

                Model Number
                Sensitivity (±10%)
                Measurement Range
                Frequency Range (±5 %)
                Operating Temperature Range
                Electrical Connector

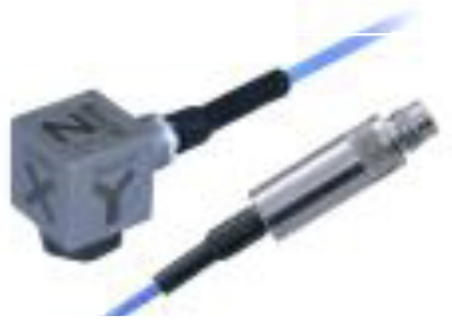

                357B11
                10 mV/g
                ±500 g pk
                1 to 13000 Hz
                -65 to +250 °F (-54 to +121 °C)
                Integral Cable


                356M41
                10 mV/g
                ±500 g pk
                10,000 Hz
                -65 to +250 °F (-54 to +121 °C)
                Integral Cable


                356M132
                500 mV/g
                ±10 g pk
                5,000 Hz
                -65 to +176 °F (-54 to +80 °C)
                1/4-28 4-Pin




Responsive Low Outgassing Accelerometers Table


                Model Number
                Sensitivity (±10%)
                Measurement Range
                Frequency Range (±5 %)
                Operating Temperature Range
                Electrical Connector

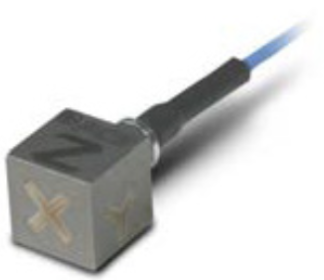

                357B11
                10 mV/g
                ±500 g pk
                1 to 13000 Hz
                -65 to +250 °F (-54 to +121 °C)
                Integral Cable

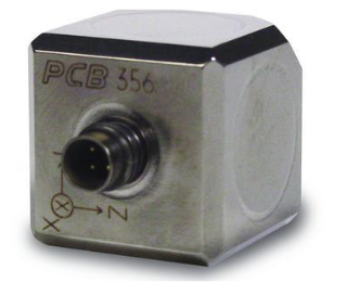

                356M98
                1000 mV/g
                ±5 g pk
                0.5 to 3000 Hz
                -65 to +250 °F (-54 to +121 °C)
                Integral Cable


                356M132
                2.5 mV/g
                ±2000 g pk
                (y or z axis) 1.0 to 10000 Hz
                -65 to +250 °F (-54 to +121 °C)
                1/4-28 4-Pin




Responsive Accelerometers Table


                Model Number
                Sensitivity (±15 %)
                Measurement Range
                Frequency Range (±5 %)
                Operating Temperature Range
                Electrical Connector



                356M98
                10 mV/g
                ±500 g pk
                0.5 to 10000 Hz
                -65 to +250 °F (-54 to +121 °C)



                356M132
                10 mV/g
                ±500 g pk
                2 to 3000 Hz
                -76 to +140 °F (-60 to +60 °C)
                1/4-28 4-Pin




Responsive Low Outgassing Accelerometers Table

        Low Outgassing Accelerometer Types

                Model Number
                Sensitivity (±20%)
                Measurement Range
                Frequency Range (±5 %) (y or z axis)
                Operating Temperature Range
                Electrical Connector



                356A01/NC
                10 mV/g
                ±500 g pk
                2 to 8000 Hz
                -65 to +250 °F (-54 to +121 °C)
                8-36 4-Pin


                356A06/NC
                5 mV/g
                ±1000 g pk
                2 to 8000 Hz
                -65 to +250 °F (-54 to +121 °C)
                Integral Cable




Responsive Accelerometers Table


                Model Number
                Sensitivity (±10%)
                Measurement Range
                Frequency Range (±5 %)
                Operating Temperature Range
                Overload Limit (Shock)



                357A07
                1.7 pC/g
                ±2000 g pk
                15 kHz
                -100 to +500 °F (-73 to +260 °C)
                ±10000 g pk

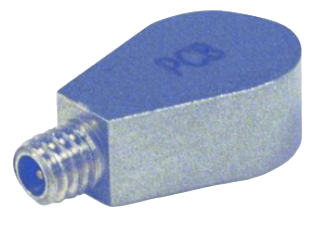

                357A09
                1.7 pC/g
                ±2000 g pk
                10000 Hz
                -100 to +350 °F (-73 to +177 °C)
                ±10000 g pk
