Inertial Sensors
| INERTIAL SENSORS | |||
|---|---|---|---|

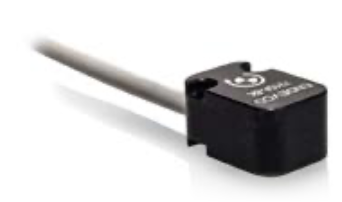

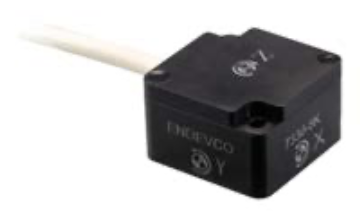

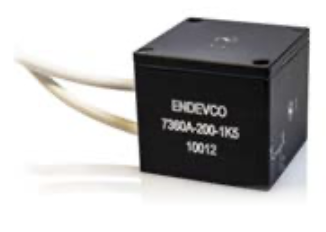

| Model Number | 7310A | 733D | 7360A |
| Description | Angular rate sensor | Triaxial angular rate sensor | Six degrees of freedom (6DoF) sensor |
| Linear Range | ±100 / ±500 / ±1,500 / ±6,000 / ±8,000 / ±12,000 / ±18,000 deg/sec |
Accelerometers: ±2 / ±10 / ±50 / ±200 / ±500 g Angular rate sensors: ±100 / ±500 / ±1,500 / ±8,000 / ±12,000 ±18,000 deg/sec |
|
| Sensitivity | 20 / 4 / 1.333 / 0.333 / 0.25 / 0.167 / 0.111 mV/deg/sec |
Accelerometers: 1000 / 200/ 40/ 10 / 4 mV/g Angular rate sensors: 20 / 4 / 1.333 / 0.25 / 0.167 / 0.111 mV/deg/sec |
|
| Frequency Response | 0-1000 / 0-1000 / 0-1000 / 0-1000 / 0-2000 / 0-2000 +1dB/-3dB Hz |
Accelerometers: 0-300 / 0-1500 / 0-1800 0-1800 / 0-1800 ±1dB Hz Angular rate sensors: 0-1000 / 0-1000 / 0-1000 / 0-1000 0-2000 / 0-2000 +1dB/-3dB Hz |
|
| Shock Limit (g) | 5,000 | ||
| Typical Applications | Automotive safety and ATD testing, and other applications requiring accurate measurement of rotational velocity | Automotive and aerospace testing requiring pitch, roll and yaw measurement, automotive roll-over ATD head, chest and leg positions | Vehicle dynamics, aircraft flight testing, spacecraft and satellite, missile testing, and automotive testing |
