High Temperature Charge Mode Accelerometers

High Temperature Single and Triaxial Charge Accelerometers

Responsive Charge Accelerometers Table

        SINGLE AXIS CHARGE ACCELEROMETERS

                Model Number
                Sensitivity (±10%)
                Measurement Range
                Frequency Range (±5%)
                Operating Temperature Range



                320C03
                10 mV/g
                ±500 g pk
                6000 Hz
                -100 to +325 °F (-73 to +163 °C)


                320C04
                10 mV/g
                ±500 g pk
                10,000 Hz
                -100 to +325 °F (-73 to +163 °C)


                320C15
                10 mV/g
                ±500 g pk
                10,000 Hz
                -100 to +325 °F (-73 to +163 °C)




Responsive Charge Accelerometers Table

        SINGLE AXIS CHARGE ACCELEROMETERS

                Model Number
                Sensitivity (±10%)
                Measurement Range
                Frequency Range (±5%)
                Operating Temperature Range



                320C33
                100 mV/g
                ±50 g pk
                4000 Hz
                -100 to +325 °F (-73 to +163 °C)


                320C52
                10 mV/g
                ±500 g pk
                10,000 Hz
                -100 to +325 °F (-73 to +163 °C)


                M320C52
                10 mV/g
                ±500 g pk
                10,000 Hz
                -100 to +325 °F (-73 to +163 °C)




Responsive Charge Accelerometers Table

        SINGLE AXIS CHARGE ACCELEROMETERS

                Model Number
                Sensitivity (±20%)
                Measurement Range
                Frequency Range (±5%)
                Operating Temperature Range



                320C53
                1 mV/g
                ±5000 g pk
                5,000 Hz
                -100 to +325 °F (-73 to +163 °C)


                M320C53
                1 mV/g
                ±5000 g pk
                5,000 Hz
                -100 to +325 °F (-73 to +163 °C)




Responsive Triaxial Charge Accelerometers Table

        TRIAXIAL CHARGE ACCELEROMETERS

                Model Number
                Sensitivity (±10%)
                Measurement Range
                Frequency Range (+/-10%)
                Operating Temperature Range



                HT356A43
                10 mV/g
                ±500 g pk
                10,000 Hz
                -65 to 200 °F (-54 to 93 °C)


                HT356A44
                50 mV/g
                ±100 g pk
                10,000 Hz
                -65 to 200 °F (-54 to 93 °C)


                HT356A15
                100 mV/g
                ±50 g pk
                6500 Hz
                -65 to +250 °F (-54 to +121 °C)




Responsive Triaxial Charge Accelerometers Table

        TRIAXIAL CHARGE ACCELEROMETERS

                Model Number
                Sensitivity (±10%)
                Measurement Range
                Frequency Range (±5%)
                Operating Temperature Range



                339A30
                10 mV/g
                ±500 g pk
                8000 Hz
                -65 to +325 °F (-54 to +163 °C)


                TLD339A34
                50 mV/g
                ±100 g pk
                5000 Hz
                -65 to +325 °F (-54 to +163 °C)


                TLD339A36
                10 mV/g
                ±500 g pk
                5000 Hz
                -65 to +325 °F (-54 to +163 °C)




Responsive Triaxial Charge Accelerometers Table

        TRIAXIAL CHARGE ACCELEROMETERS

                Model Number
                Sensitivity (±10%)
                Measurement Range
                Frequency Range (±5%)
                Operating Temperature Range



                TLD339A37
                100 mV/g
                ±50 g pk
                4000 Hz
                -65 to 356 °F (-54 to 180 °C)


                HT356A25
                25 mV/g
                ±200 g pk
                5000 Hz
                -65 to +250 °F (-54 to +121 °C)


                339B32
                10 mV/g
                ±500 g pk
                ±500 g pkHz
                -65 to +325 °F (-54 to +163 °C)


                HT339C31
                10 mV/g
                500 g pk
                11,000 Hz
                -65 to +250 °F (-54 to +121 °C)




Responsive Triaxial Charge Accelerometers Table

        TRIAXIAL CHARGE ACCELEROMETERS

                Model Number
                Sensitivity (±20%)
                Measurement Range
                Frequency Range (±5 %) (y or z axis)
                Operating Temperature Range



                HT356B01
                100 mV/g
                ±1000 g pk
                8000 Hz
                -65 to +356 °F (-54 to +180 °C)


                HTJ356B01
                5 mV/gmV/g
                ±1000 g pk
                8000 Hz
                -65 to +356 °F (-54 to +180 °C)




Charge Accelerometers

Charge mode output accelerometers can operate at extremely high temperatures, up to 1200 °F (649 °C), because they do not contain the built-in signal conditioning electronics that limit the temperature range of ICP® accelerometers. They use piezo-ceramic sensing elements that output an electrostatic charge signal proportional to the applied acceleration.

Responsive High Temperature Accelerometers Table

        HIGH TEMPERATURE, SIDE EXIT CONNECTOR CHARGE ACCELEROMETERS

                Model Number
                Sensitivity (±15%)
                Measurement Range
                Frequency Range (±5%)



                357B03
                10 pC/g
                ±2,000 g pk
                9,000 Hz


                357B21
                30 pC/g
                ±1,500 g pk
                6,000 Hz


                7201-50
                50 pC/g
                2,000 g pk
                6,000 Hz


                7201-10
                10 pC/g
                2,000 g pk
                11,000 Hz


                Operating Temperature Range
                -95 to +500 °F (-71 to +260 °C)


                Typical Applications
                High temperature vibration measurements for product testing, structural testing, vibration control, and package drop testing




Responsive High Temperature Accelerometers Table

        HIGH TEMPERATURE, SIDE EXIT CONNECTOR CHARGE ACCELEROMETERS

                Model Number
                Sensitivity
                Measurement Range
                Frequency Range (±5%)
                Operating Temperature Range
                Typical Applications



                2221F
                10 pC/g
                2,000 g pk
                10,000 Hz
                -67 to +500 °F (-55 to +260 °C)
                High temperature vibration measurements on small structures and objects in extreme environmental conditions

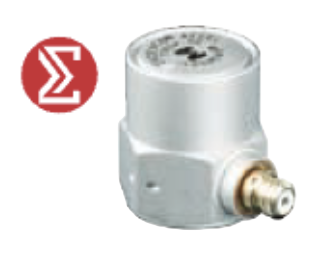

                7703A-100
                100 pC/g
                500 g pk
                5,000 Hz
                -67 to +550 °F (-55 to +288 °C)
                High temperature vibration measurements in radiation environments up to 10⁸ rads


                7703A-50
                300 pC/g
                2,000 g pk
                6,000 Hz
                -67 to +550 °F (-55 to +288 °C)
                High temperature vibration measurements in radiation environments up to 10⁸ rads

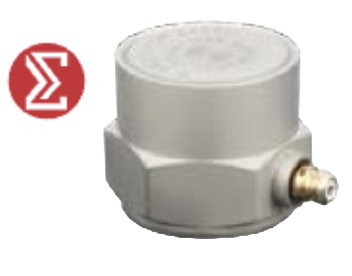

                7703A-200
                200 pC/g
                850 g pk
                4,000 Hz
                -67 to +550 °F (-55 to +288 °C)
                High temperature vibration measurements in radiation environments up to 10⁸ rads




Responsive High Temperature Accelerometers Table

        HIGH TEMPERATURE, TOP EXIT CONNECTOR CHARGE ACCELEROMETERS

                Model Number
                Sensitivity (±15%)
                Measurement Range
                Frequency Range (±5%)



                357B04
                10 pC/g
                ±2,000 g pk
                9,000 Hz


                357B22
                30 pC/g
                ±1,500 g pk
                6,000 Hz


                7704A-100
                100 pC/g
                1,000 g pk
                6,000 Hz


                7704A-50
                50 pC/g
                2,000 g pk
                5,000 Hz


                Operating Temperature Range
                -95 to +500 °F (-71 to +260 °C)


                Typical Applications
                High temperature vibration measurements for product testing, structural testing, vibration control, and package drop testing




Responsive Triaxial Charge Accelerometers Table

        TRIAXIAL CHARGE ACCELEROMETERS

                Model Number
                Sensitivity (±15%)
                Measurement Range
                Frequency Range (±5%)

                356A70
                2.7 pC/g
                ±500 g pk
                5,000 Hz

                356A71
                10 pC/g
                ±500 g pk
                5,000 Hz

                2228C
                2.8 pC/g
                2,000 g pk
                4,000 Hz

                Operating Temperature Range
                -95 to +490 °F (-71 to +254 °C)

                Typical Applications
                Vibration measurements for modal analysis, micro machining, motors and pumps, and vibration isolation

Responsive Miniature Charge Accelerometers Table

        MINIATURE CHARGE ACCELEROMETERS

                Model Number
                Sensitivity (±15%)
                Measurement Range
                Frequency Range (±5%)
                Operating Temperature Range



                357B11
                3.0 pC/g
                ±2,300 g pk
                12,000 Hz
                -95 to +500 °F (-71 to +260 °C)


                2220E
                3 pC/g
                5,000 g pk
                10,000 Hz
                -67 to +500 °F (-55 to +260 °C)


                7240C
                3 pC/g
                5,000 g pk
                5,000 Hz
                -67 to +350 °F (-55 to +177 °C)


                Typical Applications
                Vibration measurements for small objects, micro machining, motors and pumps, and vibration isolation




Responsive Miniature Charge Accelerometers Table

        MINIATURE CHARGE ACCELEROMETERS

                Model Number
                Sensitivity
                Measurement Range
                Frequency Range (±5%)
                Operating Temperature Range



                2226C
                2.8 pC/g
                2,000 g pk
                5,000 Hz
                -67 to +350 °F (-55 to +177 °C)


                2222C
                1.4 pC/g
                2,000 g pk
                8,000 Hz
                -67 to +350 °F (-55 to +177 °C)


                357A07
                1.7 pC/g
                ±2,000 g pk
                15,000 Hz
                -100 to +500 °F (-73 to +260 °C)


                Typical Applications
                Vibration measurements for small objects, micro machining, motors and pumps, and vibration isolation




Responsive Differential Charge Accelerometers Table

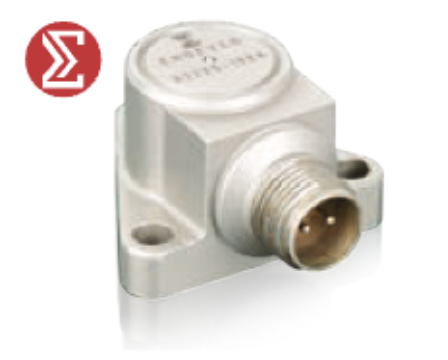

        HIGH TEMPERATURE, DIFFERENTIAL CHARGE ACCELEROMETERS

                Model Number
                Sensitivity (±15 %)
                Measurement Range
                Frequency Range (±5%)

                6222S-20A
                20 pC/g
                2,000 g pk
                9,000 Hz

                6222S-50A
                50 pC/g
                1,000 g pk
                6,000 Hz

                6222S-100A
                100 pC/g
                500 g pk
                6,000 Hz

                Operating Temperature Range
                -65 to +500 °F (-54 to +260 °C)

                Typical Applications
                Vibration measurement of gas turbine engines used in aircraft and industrial applications

Responsive Very High Temperature Accelerometers Table

        VERY HIGH TEMPERATURE, SINGLE ENDED, RADIATION HARDENED CHARGE ACCELEROMETERS

                Model Number
                Sensitivity
                Measurement Range
                Frequency Range



                357B61
                10 pC/g (±10%)
                ±1,000 g pk
                5,000 Hz (±5%)


                357B69
                3.5 pC/g (±20 %)
                ±500 g pk
                6,000 Hz (±5 %)


                357A63
                0.53 pC/g (±10%)
                ±5000 g pk
                10,000 Hz (±10%)


                EX356A73
                3.1 (±10%)
                ±500 g pk
                4,000 Hz (±5%)


                Operating Temperature Range
                -65 to +900 °F (-54 to +482 °C)


                Typical Applications
                Engine compartment studies, exhaust component vibration tests, steam turbine testing, and engine vibration analysis




Responsive Very High Temperature Accelerometers Table

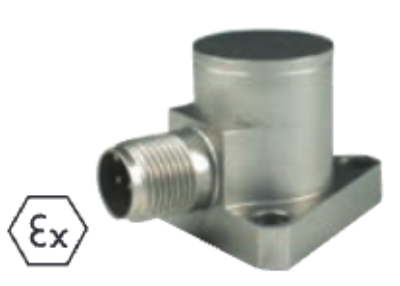

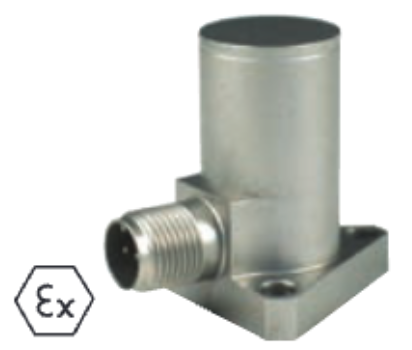

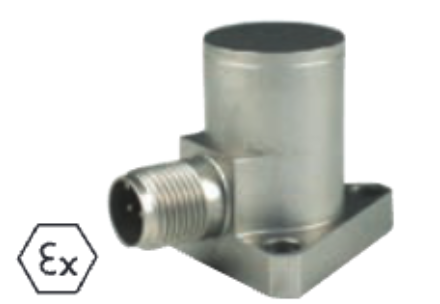

        VERY HIGH TEMPERATURE, DIFFERENTIAL, RADIATION HARDENED CHARGE ACCELEROMETERS

                Model Number
                Sensitivity (±5%)
                Measurement Range
                Frequency Range (±5%)

                EX357C71
                10 pC/g
                ±1,000 g pk
                4,000 Hz

                EX357C72
                50 pC/g
                ±500 g pk
                2,500 Hz

                EX357C73
                100 pC/g
                ±300 g pk
                2,000 Hz

                Operating Temperature Range
                -65 to +900 °F (-54 to +482 °C)

                Typical Applications
                Engine compartment studies, exhaust component vibration tests, steam turbine testing, and engine vibration analysis

Responsive Extreme Temperature Accelerometers Table

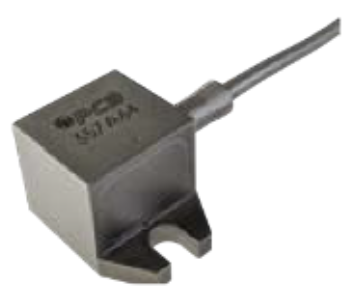

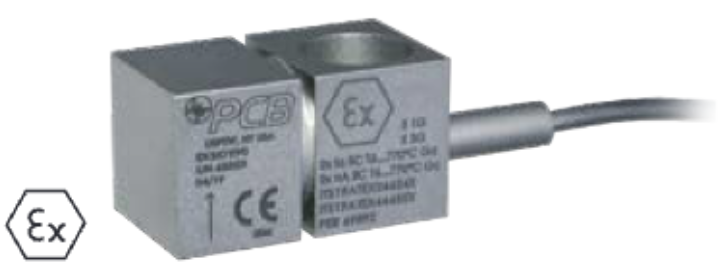

        EXTREME TEMPERATURE, SINGLE ENDED, RADIATION HARDENED CHARGE ACCELEROMETERS

                Model Number
                Sensitivity (±10%)
                Measurement Range
                Frequency Range (±5%)



                EX357E90
                5 pC/g
                ±1,000 g pk
                3,000 Hz


                EX357E91
                5 pC/g
                ±1,000 g pk
                3,000 Hz


                EX357E92
                2.3 pC/g
                ±1,000 g pk
                3,000 Hz


                EX357E93
                2.3 pC/g
                ±1,000 g pk
                3,000 Hz


                357A64
                1.15 pC/g
                ±1,000 g pk
                10,000 Hz


                Operating Temperature Range
                -67 to 1200 °F (-55 to 649 °C)


                Typical Applications
                Ultra-high temperature measurements for engine compartment studies, exhaust component vibration tests, steam turbine testing and engine vibration analysis




Responsive Extreme Temperature Accelerometers Table

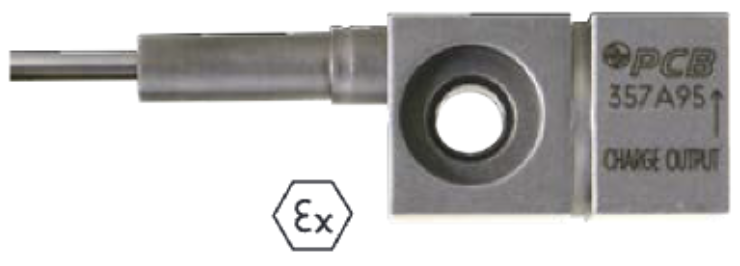

        EXTREME TEMPERATURE, DIFFERENTIAL, RADIATION HARDENED CHARGE ACCELEROMETERS

                Model Number
                Sensitivity (±10%)
                Measurement Range
                Frequency Range (±5%)

                EX357A94
                5 pC/g
                ±1,000 g pk
                3,000 Hz

                EX357A95
                5 pC/g
                ±1,000 g pk
                3,000 Hz

                Operating Temperature Range
                -67 to 1200 °F (-55 to 649 °C)

                Typical Applications
                Aviation / power generation turbine research and development applications
