Force Sensors for Research & Development

PCB's quartz-based, piezoelectric force and strain sensors are durable measurement devices with exceptional characteristics for measuring high frequency dynamic force and strain events. Typical measurements include dynamic and quasi-static forces encountered during actuation, cutting, crimping, compression, impact, impulse, reaction, and tension.

Responsive Force Sensors Table

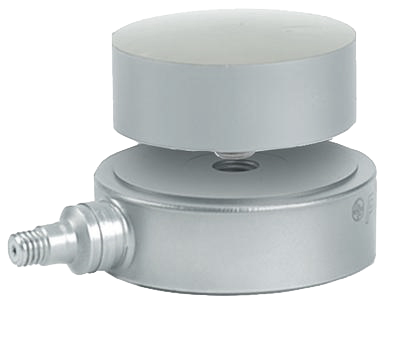

        GENERAL PURPOSE QUARTZ ICP® FORCE SENSORS

                Model Number
                Sensitivity (±15 %)
                Measurement Range (Compression / Tension)
                Low Frequency Response (-5 %)
                Upper Frequency Limit
                Discharge Time Constant

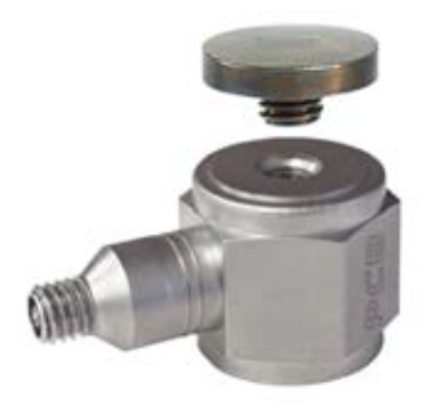

                208C01
                500 mV/lb
                10 lb / 10 lb
                0.01 Hz
                36,000 Hz
                ≥50 sec


                (TLD)208C02
                50 mV/lb
                100 lb / 100 lb
                0.001 Hz
                36,000 Hz
                ≥500 sec


                (TLD)208C03
                10 mV/lb
                500 lb / 500 lb
                0.001 Hz
                36,000 Hz
                ≥500 sec


                208C04
                5 mV/lb
                1,000 lb / 500
                0.0003 Hz
                36,000 Hz
                ≥2,000 sec


                208C05
                1 mV/lb
                5,000 lb / 500
                0.0003 Hz
                36,000 Hz
                ≥2,000 sec


                Typical Applications
                Validation of dynamic force in repetitive automation and machine tool processes; drop testing; integration into force plates and material sample testing equipment.




Responsive Quartz Force Sensors Table

        GENERAL PURPOSE QUARTZ CHARGE FORCE SENSORS

                Model Number
                Sensitivity (±15 %)
                Measurement Range (Compression / Tension)
                Upper Frequency Limit

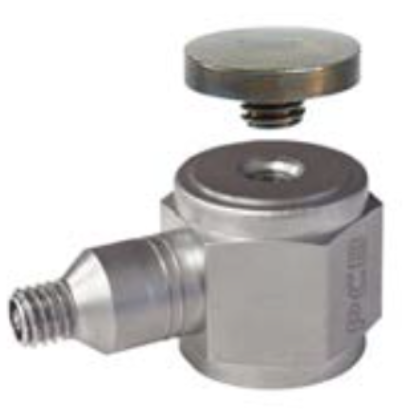

                218C
                18 pC/lb
                ≤5,000 lb / ≤500 lb
                36,000 Hz

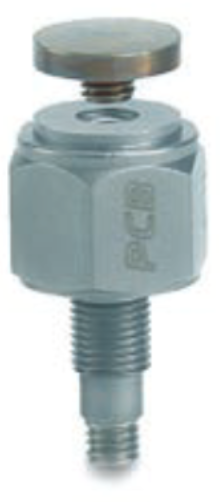

                218A11
                18 pC/lb
                ≤5,000 lb / ≤500 lb
                36,000 Hz

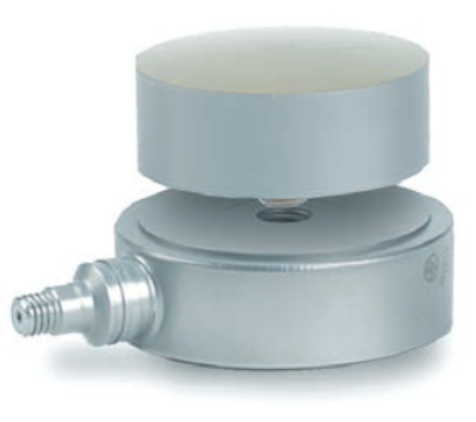

                210B20
                18 pC/lb
                ≤20,000 lb
                40,000 Hz

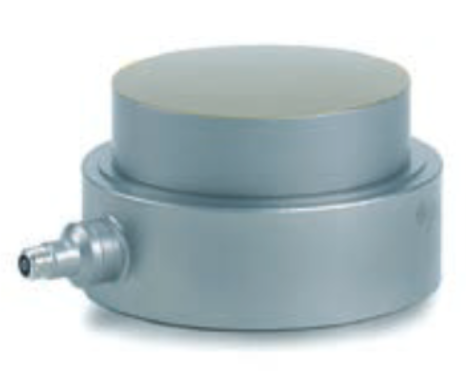

                210B50
                18 pC/lb
                ≤50,000 lb
                30,000 Hz


                Temperature Range
                -300 to +400 °F (-184 to +204 °C)


                Typical Applications
                Multi-purpose force measurements




Responsive ICP Force Rings Table

        ICP® FORCE RINGS

                Model Number
                Sensitivity (±15 %)
                Measurement Range (Compression)
                Low Frequency Response (-5 %)
                Upper Frequency Limit
                Discharge Time Constant

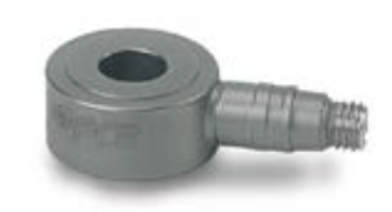

                201B01
                500 mV/lb
                10 lb
                0.01 Hz
                90,000 Hz
                ≥50 sec


                201B02
                50 mV/lb
                100 lb
                0.006 Hz
                90,000 Hz
                ≥120 sec


                201B03
                10 mV/lb
                500 lb
                0.002 Hz
                90,000 Hz
                ≥400 sec


                201B04
                5 mV/lb
                1,000 lb
                0.001 Hz
                90,000 Hz
                ≥700 sec


                201B05
                1 mV/lb
                5,000 lb
                0.0003 Hz
                90,000 Hz
                ≥2,000 sec

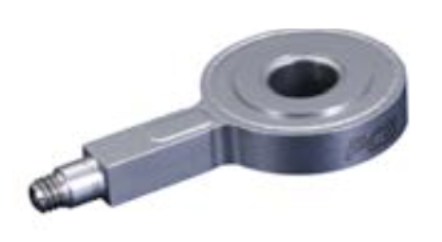

                201B76
                1 mV/lb
                5,000 lb
                0.0003 Hz
                90,000 Hz
                ≥2,000 sec


                Typical Applications
                Microsecond duration events common to metal forming equipment (crimp, bend, stake, or stamp), drop testing, and product testing applications




Responsive Miniature ICP Force Sensors Table

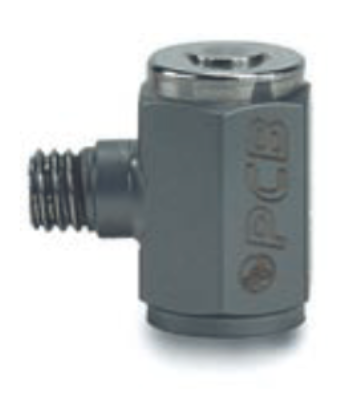

        MINIATURE ICP® FORCE SENSORS

                Model Number
                Sensitivity (±15 %)
                Measurement Range (Compression / Tension)
                Low Frequency Response (-5 %)
                Upper Frequency Limit
                Discharge Time Constant



                (M)209C01
                2,200 mV/lb
                2.2 lb / -
                0.5 Hz
                100,000 Hz
                ≥1 sec


                (M)209C02
                2,200 mV/lb
                2.2 lb / -
                0.5 Hz
                100,000 Hz
                ≥10 sec

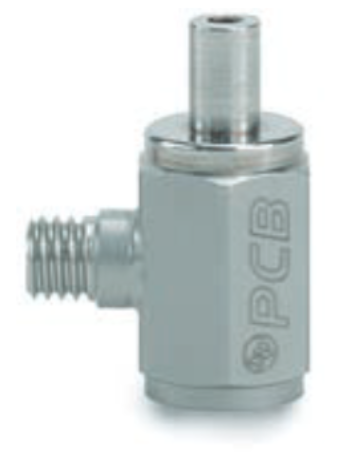

                (M)209C11
                2,200 mV/lb
                2.2 lb / 1.0 lb
                0.5 Hz
                30,000 Hz
                ≥1 sec


                (M)209C12
                2,200 mV/lb
                2.2 lb / 1.0 lb
                0.5 Hz
                30,000 Hz
                ≥10 sec


                Typical Applications
                Dynamic tension and compression, impact and repetitive applications, drop testing, and materials testing




Responsive Three Component Charge Force Rings Table

        MINIATURE CHARGE FORCE SENSOR

                Model Number
                Sensitivity (±15 %)
                Measurement Range (Compression)
                Upper Frequency Limit

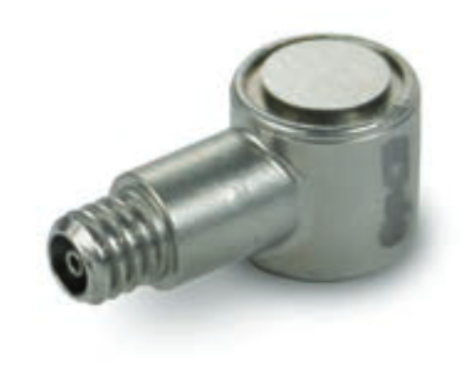

                219A05
                20 pC/lb
                560 lb
                140,000 Hz

                Temperature Range
                -300 to +400 °F (-184 to +204 °C)

                Typical Applications
                Dynamic tension and compression, impact and repetitive applications,
drop testing, and materials testing

Responsive Three Component ICP Force Rings Table

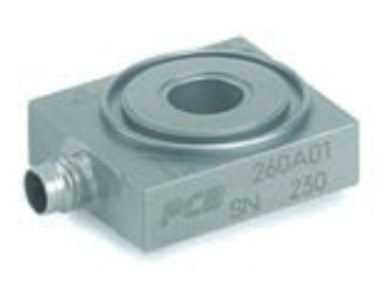

        THREE COMPONENT ICP® FORCE RINGS

                Model Number
                Sensitivity (±20 %)
                Measurement Range
                Low Frequency Response (-5 %)
                Upper Frequency Limit
                Discharge Time Constant



                260A01
                2.5 mV/lb
                1,000 lb
(X or Y Axis) 500 lb
                0.01 Hz
                90,000 Hz
                ≥50 sec

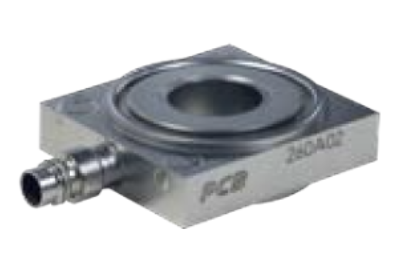

                260A02
                2.5 mV/lb
(X or Y Axis) 10 mV/lb
                1,000 lb
(X or Y Axis) 1,000 lb
                0.01 Hz
(X or Y Axis) 0.001 Hz
                90,000 Hz
                ≥50 sec
(X or Y Axis) ≥500 sec

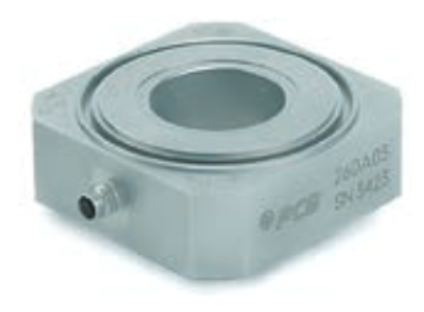

                260A03
                0.25 mV/lb
(X or Y Axis) 1.25 mV/lb
                10,000 lb
(X or Y Axis) 4,000 lb
                0.01 Hz
(X or Y Axis) 0.001 Hz
                39,000 Hz
                ≥50 sec
(X or Y Axis) ≥500 sec


                Typical Applications
                Force limited vibration testing, cutting tool forces, force dynamometer, engine mount analysis, biomechanics, and modal analysis




Responsive Three Component Charge Force Rings Table

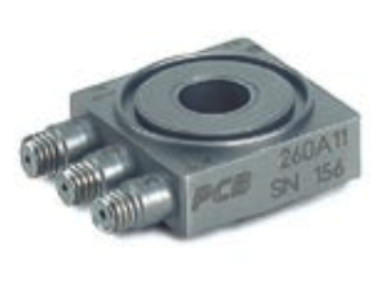

        THREE COMPONENT CHARGE FORCE RINGS

                Model Number
                Sensitivity (±20 %)
                Measurement Range
                Upper Frequency Limit



                260A11
                15 pC/lb
                1,000 lb
(X or Y Axis) 500 lb
                90,000 Hz

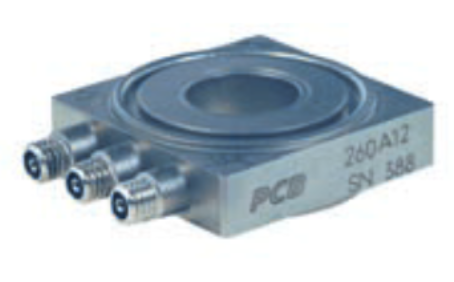

                260A12
                15 pC/lb
(X or Y Axis) 32 pC/lb
                1,000 lb
(X or Y Axis) 1,000 lb
                90,000 Hz

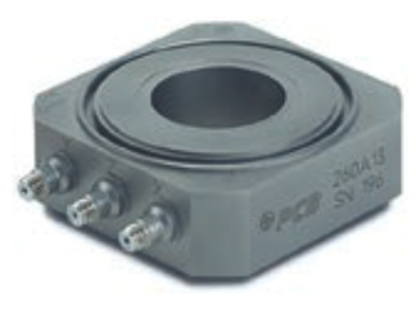

                260A13
                15 pC/lb
(X or Y Axis) 32 pC/lb
                10,000 lb
(X or Y Axis) 4,000 lb
                39,000 Hz


                Temperature Range
                -100 to +350 °F (-73 to +177 °C)


                Typical Applications
                Chassis and other vehicle dynamic measurements, cutting tool forces and tool wear, force limited vibration testing, modal analysis, biomechanics, engine mount analysis, drop testing, and crash testing
