Cryogenic Charge
| CRYOGENIC CHARGE ACCELEROMETERS | ||||
|---|---|---|---|---|

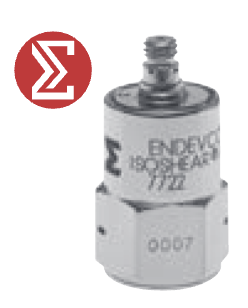

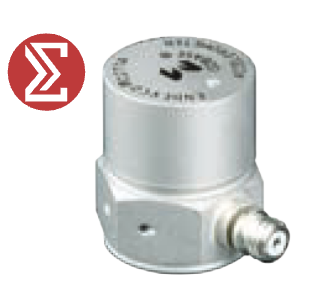

| Model Number | 2271AM20 | 2271A | 7722 | 7724 |
| Sensitivity (±15 %) | 11.5 pC/g | 11.5 pC/g | 3.7 pC/g | 3.7 pC/g |
| Measurement Range | 10,000 g pk | 10,000 g pk | 500 g pk | 500 g pk |
| Frequency Range (±5%) | 4,000 Hz | 4,000 Hz | 4,000 Hz | 4,000 Hz |
| Operating Temperature Range | -452 to +500 °F (-269 to +260 °C) | -452 to +350 °F (-269 to +177 °C) | ||
| Typical Applications | Rocket engine testing, vibroacoustic testing, and vehicle dynamics studies | |||
